Buy a spider boom lift at KEY-TEC
Looking for an aerial platform that can handle hard-to-reach spots or soft ground? At KEY-TEC you'll find spider boom lifts in various sizes, from compact models to machines with extensive reach. Thanks to their tracks and extendable outriggers, you can work safely on uneven or fragile surfaces and pass through narrow access points. We're happy to help you choose the spider boom lift that fits your work and budget.
We can help!
Call us at: +32 9 326 00 99
i23
The CMC i23 is a compact tracked spider lift with a working height of up to 23.3 m and a horizontal outreach of up to 10.3 m. With 400° continuous rotation and electrical insulation up to 46 kV, it reaches high and far, even near live power lines.
- Max. working height (m) 23.300 m
- Max. outreach (m) 10.300 m
- Weight 3930 kg
i27
The CMC i27 is a compact tracked spider lift with a working height of up to 26.6 m and one of the widest horizontal outreaches in its class, up to 13.3 m. With 400° continuous rotation and insulation up to 46 kV, it reaches high and far, even near live power lines.
- Max. working height (m) 26.600 m
- Max. outreach (m) 13.300 m
- Weight 4680 kg
S13F
The CMC S13F is the most compact spider lift in the CMC range, with a working height of up to 12.9 m, a horizontal outreach of up to 8.5 m and a basket capacity of 230 kg. At just 1,565 kg, it reaches tight spaces and difficult access that larger platforms cannot.
- Max. working height (m) 12.800 m
- Max. outreach (m) 8.500 m
- Weight 1580 kg

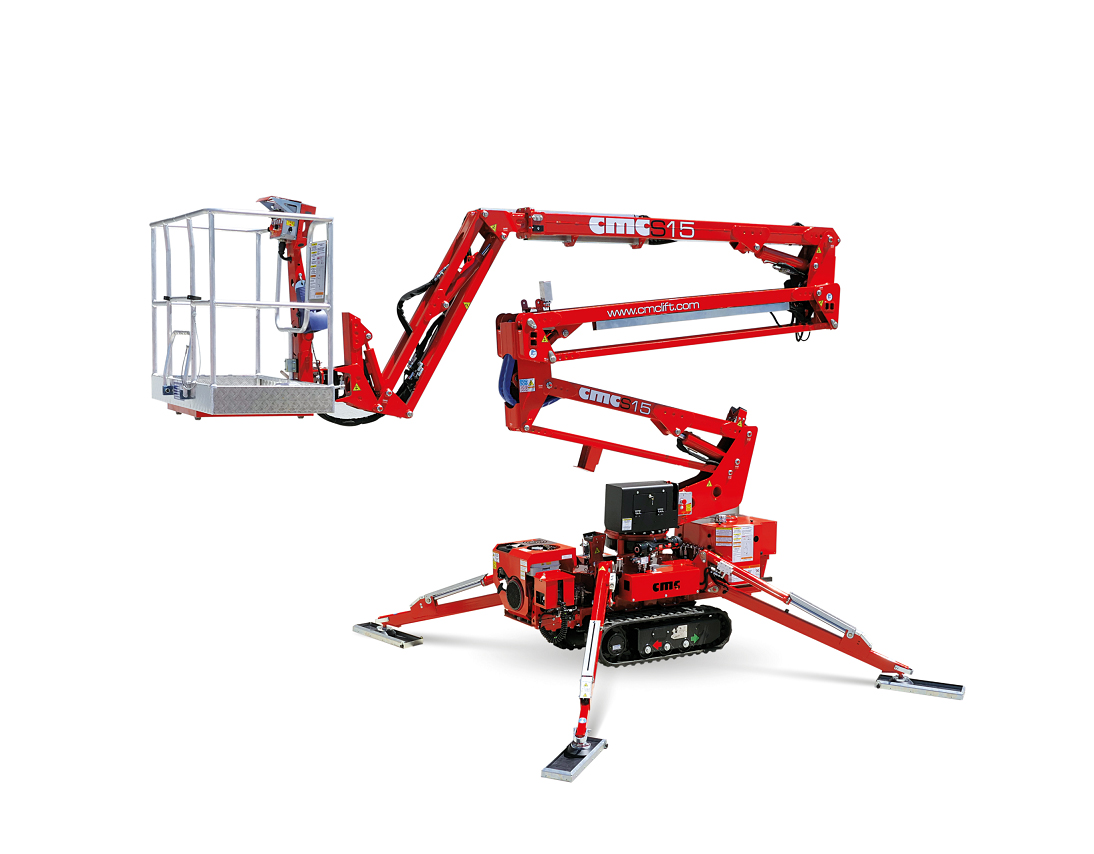

S15
Compact CMC S15 tracked spider lift with a working height of nearly 15 metres, horizontal reach of 6.9 metres, narrow undercarriage and variable outrigger legs. Suited to façade maintenance, painting work, installations, tree care, churches, museums, historic buildings and hard-to-reach places.
- Max. working height (m) 14.900 m
- Max. outreach (m) 6.900 m
- Weight 1820 kg
S15F
The CMC S15F is a compact spider lift with a working height of up to 14.8 m, a wide horizontal outreach of up to 8.7 m and a basket capacity of 200 kg. Its small stabiliser footprint gives maximum stability, even on difficult surfaces.
- Max. working height (m) 14.800 m
- Max. outreach (m) 8.700 m
- Weight 2378 kg
S18F
The CMC S18F is a multifunctional spider lift with a working height of up to 17.78 m, an impressive horizontal outreach of up to 11.15 m and a basket capacity of up to 230 kg. Its adjustable tracks narrow for access and widen for stability.
- Max. working height (m) 17.780 m
- Max. outreach (m) 11.150 m
- Weight 2495 kg
S19HD
The CMC S19HD is a heavy-duty spider lift with a working height of up to 18.7 m, a horizontal outreach of up to 11.4 m and a basket capacity of up to 220 kg. Its high-levelling stamp legs make it a strong alternative to a truck-mounted lift, even on demanding terrain.
- Max. working height (m) 18.700 m
- Max. outreach (m) 11.400 m
- Weight 2685 kg
S20
The CMC S20 is a compact spider lift with double pantograph, a working height of 19.9 m and an outreach of up to 10.4 m, even at full platform capacity of 230 kg. With a weight under 3,000 kg, adjustable tracks and automatic outrigger levelling, you work in an agile and stable way, even on uneven terrain and in tight spaces.
- Max. working height (m) 19.900 m
- Max. outreach (m) 10.400 m
- Weight 2980 kg
S23
Compact CMC S23 tracked spider lift with a working height of 23 metres, sideways reach of up to 12.4 metres, platform capacity of over 200 kg, automatic levelling and variable outrigger legs. Suited to tree care, façade maintenance, painting work, industrial cleaning, inspections, churches, museums and hard-to-reach places.
- Max. working height (m) 23.000 m
- Max. outreach (m) 12.400 m
- Weight 3000 kg
S27
The CMC S27 is a high-performance spider lift with a working height of up to 27.3 m, a large horizontal outreach of up to 15.4 m and a basket capacity of up to 230 kg. It also works up to 6.7 m below ground level, over edges and into pits.
- Max. working height (m) 27.300 m
- Max. outreach (m) 15.400 m
- Weight 4109 kg
S30
The CMC S30 is a high-performance spider lift with a working height of up to 30.3 m, a large horizontal outreach of up to 15.4 m and a basket capacity of up to 230 kg. It also works up to 6.7 m below ground level, over edges and into pits.
- Max. working height (m) 30.300 m
- Max. outreach (m) 15.400 m
- Weight 4285 kg
S32
The CMC S32 is CMC's tallest spider lift, with a working height of up to 32 m, a horizontal outreach of up to 16 m and a basket capacity of up to 220 kg. An advanced automatic guidance and control system keeps set-up and operation fast and precise.
- Max. working height (m) 32.000 m
- Max. outreach (m) 16.000 m
- Weight 7255 kg
