TJ 280

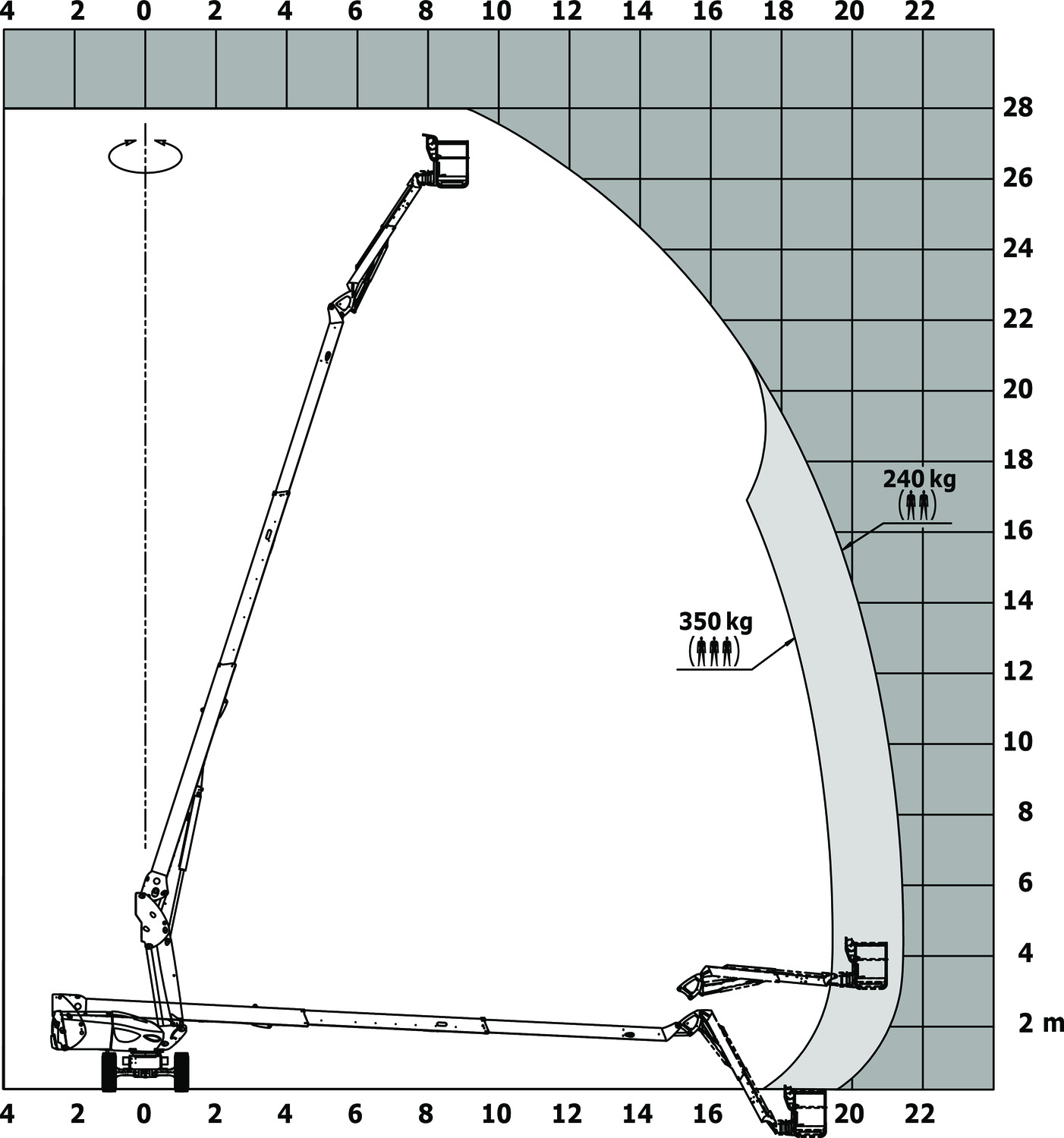

Powerful Manitou 280 TJ telescopic boom lift with a working height of up to approximately 27.7 to 28 metres, horizontal outreach of up to approximately 21.5 metres, lifting capacity of 240 to 350 kg, diesel engine, 4x4 drive and off-road tyres. Suitable for construction, industry, infrastructure, façade work, steel structures, prefab assembly, events and maintenance at height.
Prices for new machines on order are always on request
- SALE - Available from stock
- Delivery by our own transport
- High-quality service, also on-site
Properties
| Width (m) | 2.480 m |
|---|---|
| Length (m) | 11.360 m |
| Height (m) | 2.730 m |
| Weight | 16500 kg |
| Max. working height (m) | 27.730 m |
| Type | 4TNV88C |
|---|---|
| Emission | Tier 4A |
| Power (kW) | 34.3 kW |
Used Aerial platforms in stock - 94 items
Show all machines with filtering options to find your ideal machine!
Electric Aichi SV10EWL scissor lift with 11.68-metre working height, 450 kg lifting capacity, 1.27-metre platform extension, 1.17-metre width, non-marking tyres and proportional joystick controls. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations and professional indoor work with high platform capacity.
- Working hours 757
- Year of manufacture 2019
- Ref # 3319
- Internal # FE054
Electric Aichi SV10EWL scissor lift with 11.68-metre working height, 450 kg lifting capacity, 1.27-metre platform extension, 1.17-metre width, non-marking tyres and proportional joystick controls. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations and professional indoor work with high platform capacity.
- Working hours 599
- Year of manufacture 2021
- Ref # 4336
- Internal # FE065
Compact electric AICHI SV06 ENS scissor lift with a working height of approximately 7.7 metres, 230 kg load capacity, narrow build of about 0.81 metres, quiet emission-free drive and non-marking tyres. Suitable for indoor spaces, warehouses, shops, facility management, lighting, HVAC installations, electrical work and general maintenance.
- Working hours 107
- Year of manufacture 2019
- Ref # 4329
- Internal # FE066
Compact CMC S23 tracked spider lift with a working height of 23 metres, sideways reach of up to 12.4 metres, platform capacity of over 200 kg, automatic levelling and variable outrigger legs. Suited to tree care, façade maintenance, painting work, industrial cleaning, inspections, churches, museums and hard-to-reach places.
- Year of manufacture 2025
- Ref # 6519
- Internal # 5739
New Aerial platforms in stock - 7 items
Immediately available!
The AETJ 150-C is an electric articulating boom lift with a working height of up to 15 m for 2 operators. The robust design and the articulating telescopic boom make working in tight spaces easy. Perforated work cage floor suitable for industrial applications. Thanks to the large battery capacity, the machine can be used all day without recharging.
- Working hours 4
- Ref # 6105
- Internal # Stock
Compact CMC S15 tracked spider lift with a working height of nearly 15 metres, horizontal reach of 6.9 metres, narrow undercarriage and variable outrigger legs. Suited to façade maintenance, painting work, installations, tree care, churches, museums, historic buildings and hard-to-reach places.
- Ref # 4903
- Internal # Stock
Compact CMC S15 tracked spider lift with a working height of nearly 15 metres, horizontal reach of 6.9 metres, narrow undercarriage and variable outrigger legs. Suited to façade maintenance, painting work, installations, tree care, churches, museums, historic buildings and hard-to-reach places.
- Working hours 41
- Ref # 4904
- Internal # Stock
Mobile CTE ZED 20.4 HN van-mounted aerial work platform with working height of up to approximately 20 metres, 250 kg load capacity, large sideways outreach, articulating boom with telescope and outriggers. Suitable for utilities, telecoms, facility management, maintenance, lighting, electrical networks, façade work, building management and pruning work.
- Working hours 180
- Year of manufacture 2024
- Ref # 6560
- Internal # V004
Product information
Buy the Manitou 280 TJ
The Manitou 280 TJ is a powerful telescopic boom lift for work where maximum working height, reach and stability are required. With a working height of up to approximately 27.7 to 28 metres and a lifting capacity of 240 to 350 kg, this machine offers enough space for several people with materials. The horizontal outreach of up to approximately 21.5 metres makes hard-to-reach areas accessible without repositioning the lift frequently. Thanks to the diesel engine, 4x4 drive, off-road tyres and robust construction, the machine remains reliably deployable on rough terrain.
Telescopic boom lift for large outdoor projects

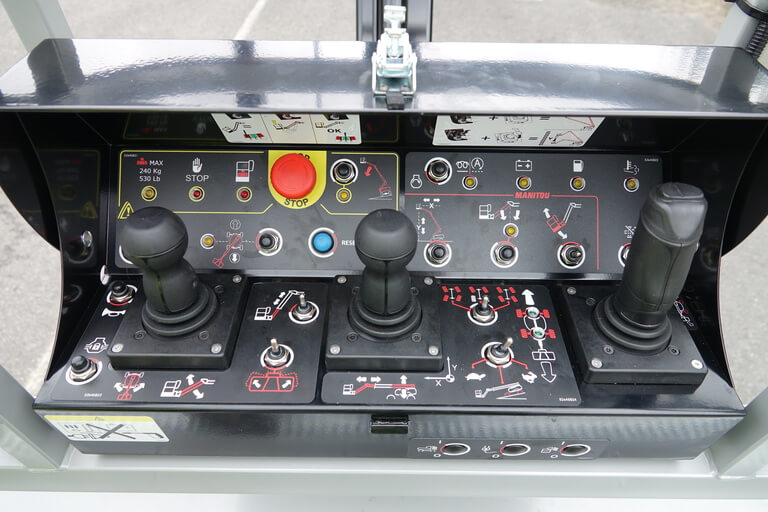

This aerial work platform is suitable for construction, industry, infrastructure, events, steel structures, façade work, prefab assembly, installations and maintenance at height. The Manitou 280 TJ truly comes into its own on large sites, industrial sites and outdoor locations where high work points need to be reached safely and efficiently. Thanks to the telescopic boom, protective work cage and ergonomic controls, the operator can work precisely at great height. This makes it an interesting purchase for intensive professional applications.
| Width (m) | 2.480 m |
|---|---|
| Length (m) | 11.360 m |
| Height (m) | 2.730 m |
| Weight | 16500 kg |
| Max. working height (m) | 27.730 m |
| Type | 4TNV88C |
|---|---|
| Emission | Tier 4A |
| Power (kW) | 34.3 kW |
