TJ 220
Telescopic boom lift for working at great heights on demanding job sites and rough terrain. Offers a working height of up to 21.74 meters, a capacity of 230 kg, and a long horizontal reach for maintenance, construction, and events.
- Prix par jour 375,00 €
- Prix par semaine 990,00 €
- Prix par mois 3 215,00 €
Après votre demande, vous recevrez une offre incluant le transport et l'assurance
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,480 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,660 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,480 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,660 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
| Max. travel speed | 4.4 km/h |
|---|---|

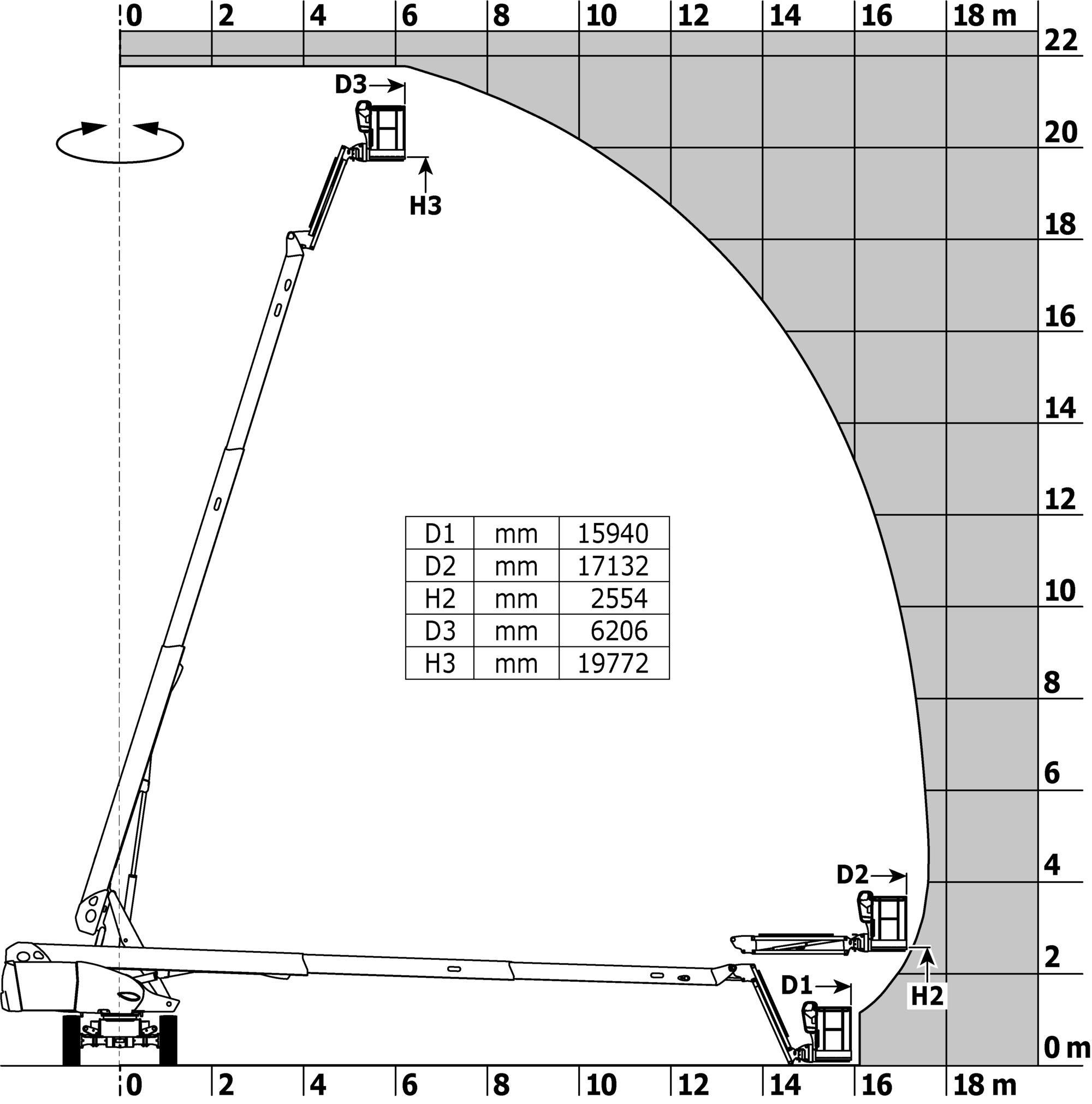

| Déport maximal (m) | 17,630 m |
| Max. platform height | 19,770 m |
| Hauteur de travail (m) | 21,770 m |
Aerial platforms d'occasion en stock - 89 articles
Afficher les machines avec des options de filtrage pour trouver votre machine idéale !
Aichi SV10EWL electric scissor lift with a working height of 11.68 meters, a lifting capacity of 450 kg, a platform extension of 1.27 meters, a width of 1.17 meters, non-marking tires, and proportional joystick control. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations, and professional interior work requiring high platform capacity.
- Ref # 3319
- Année de fabrication 2019
Aichi SV10EWL electric scissor lift with a working height of 11.68 meters, a lifting capacity of 450 kg, a platform extension of 1.27 meters, a width of 1.17 meters, non-marking tires, and proportional joystick control. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations, and professional interior work requiring high platform capacity.
- Ref # 4336
- Année de fabrication 2021
Compact electric AICHI SV06 ENS scissor lift with a working height of up to approximately 7.7 meters, a 230 kg load capacity, a narrow profile of approximately 0.81 meters, a quiet, emission-free drive system, and non-marking tires. Suitable for indoor spaces, warehouses, retail stores, facility management, lighting, HVAC installations, electrical work, and general maintenance.
- Ref # 4329
- Hauteur (m) 1,990 m
- Weight 1540 kg
- Année de fabrication 2019
Compact CMC S23 tracked spider lift with a 23-meter working height, a lateral reach of up to 12.4 meters, a platform capacity of over 200 kg, automatic leveling, and adjustable outriggers. Suitable for tree care, facade maintenance, painting, industrial cleaning, inspections, churches, museums, and hard-to-reach areas.
- Ref # 6519
- Hauteur (m) 4,510 m
- Weight 3000 kg
- Année de fabrication 2025
Informations sur le produit
Rent a Manitou TJ 220

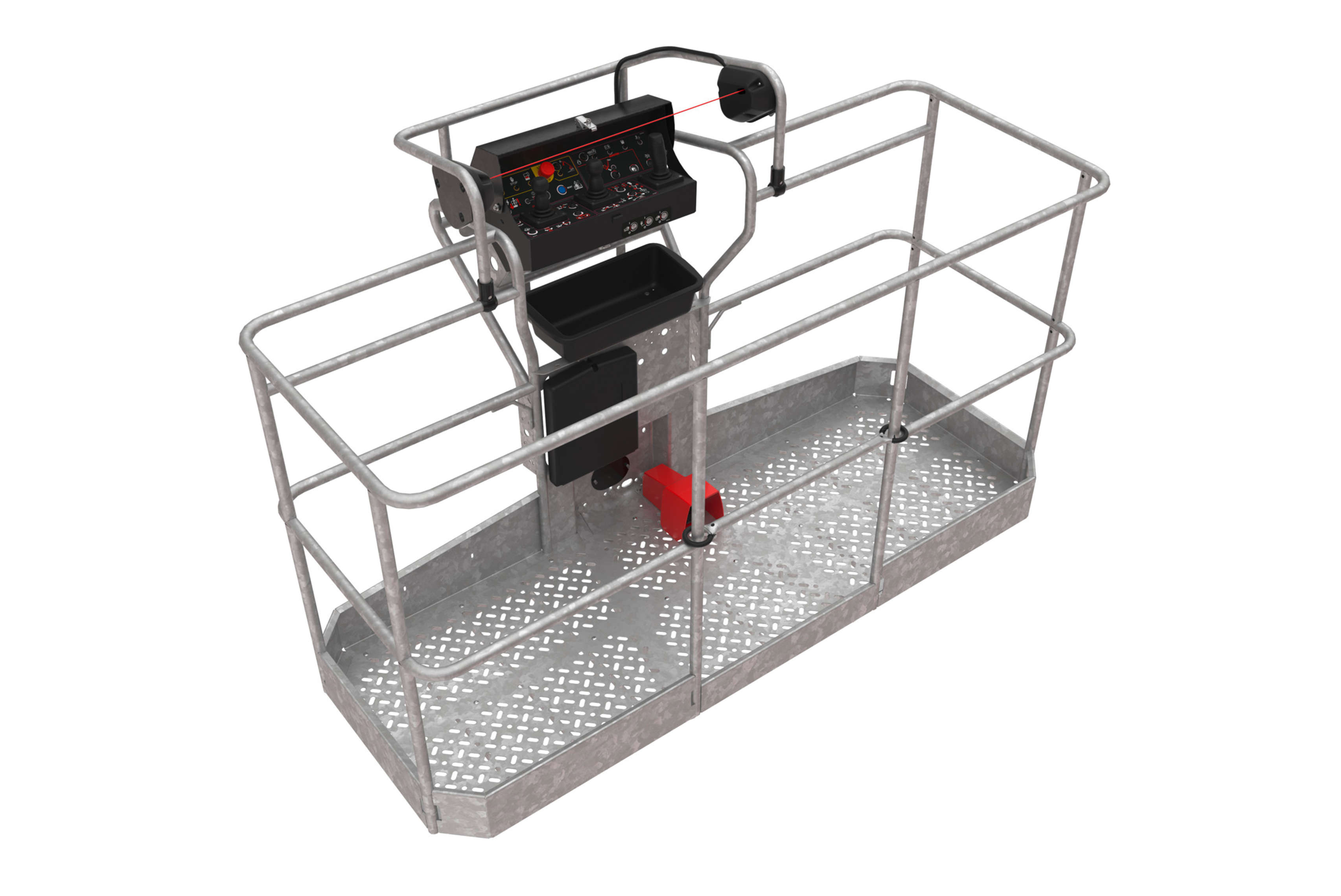

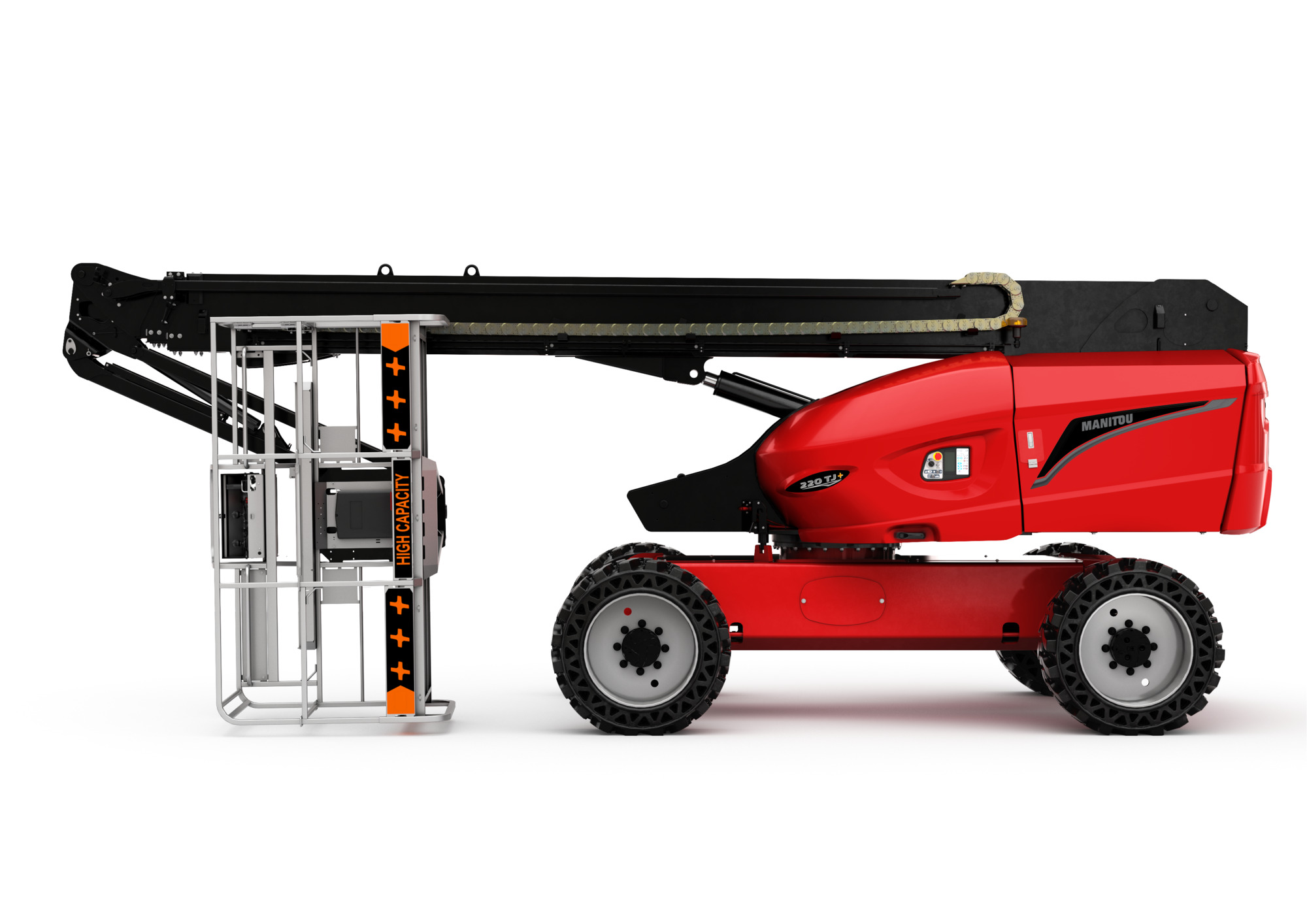

This Stage V version of the TJ 220 telescopic boom lift reaches a working height of 22 meters. The Stage V diesel engine with aftertreatment meets strict emission standards. Four-wheel drive and reinforced all-terrain tires ensure traction. A telescopic boom allows for flexible working positions. The platform accommodates two operators with tools. An ergonomic control panel supports precision work. A protective cage with all-around safety features protects operators. Compact transport dimensions speed up relocation. The S1 model indicates a specific regional configuration. Stage V engine compliance allows for trouble-free operation within low-emission zones during working hours.

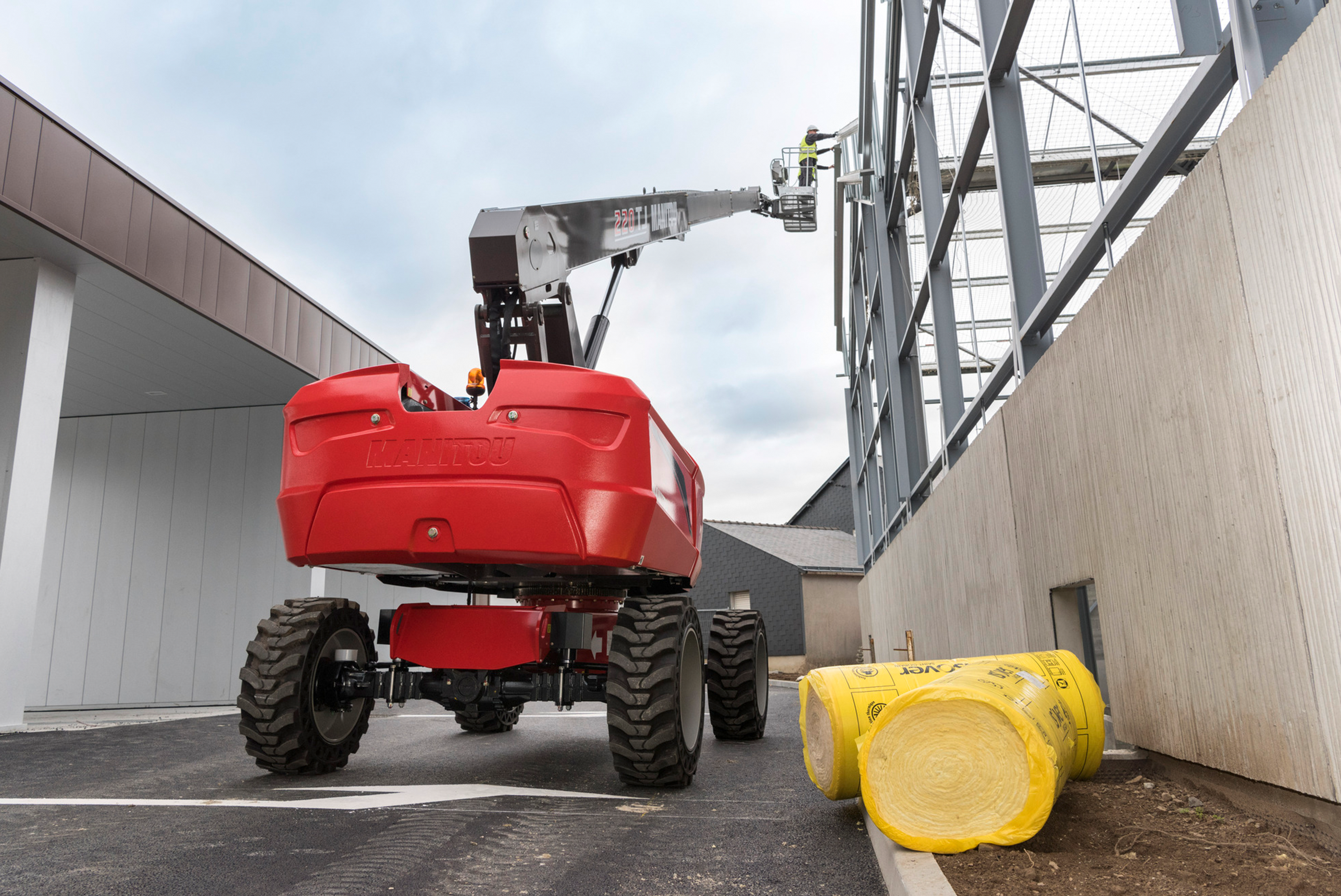

Urban construction, industrial renovation, and emission-sensitive projects benefit from this Stage V model. Working on facades or industrial installations within urban zones are core applications. Thanks to modern engine technology, operation within current environmental regulations remains possible. Contractors with sustainability policies find a modern partner for medium-height work. A future-proof rental choice when working heights above 20 meters are required within urban areas and when emission regulations play a central role in the client’s or contractor’s project selection policy for longer deployment periods at specific job sites.
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,480 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,660 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,480 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,660 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
| Max. travel speed | 4.4 km/h |
|---|---|
| Déport maximal (m) | 17,630 m |
| Max. platform height | 19,770 m |
| Hauteur de travail (m) | 21,770 m |
