TJP 220

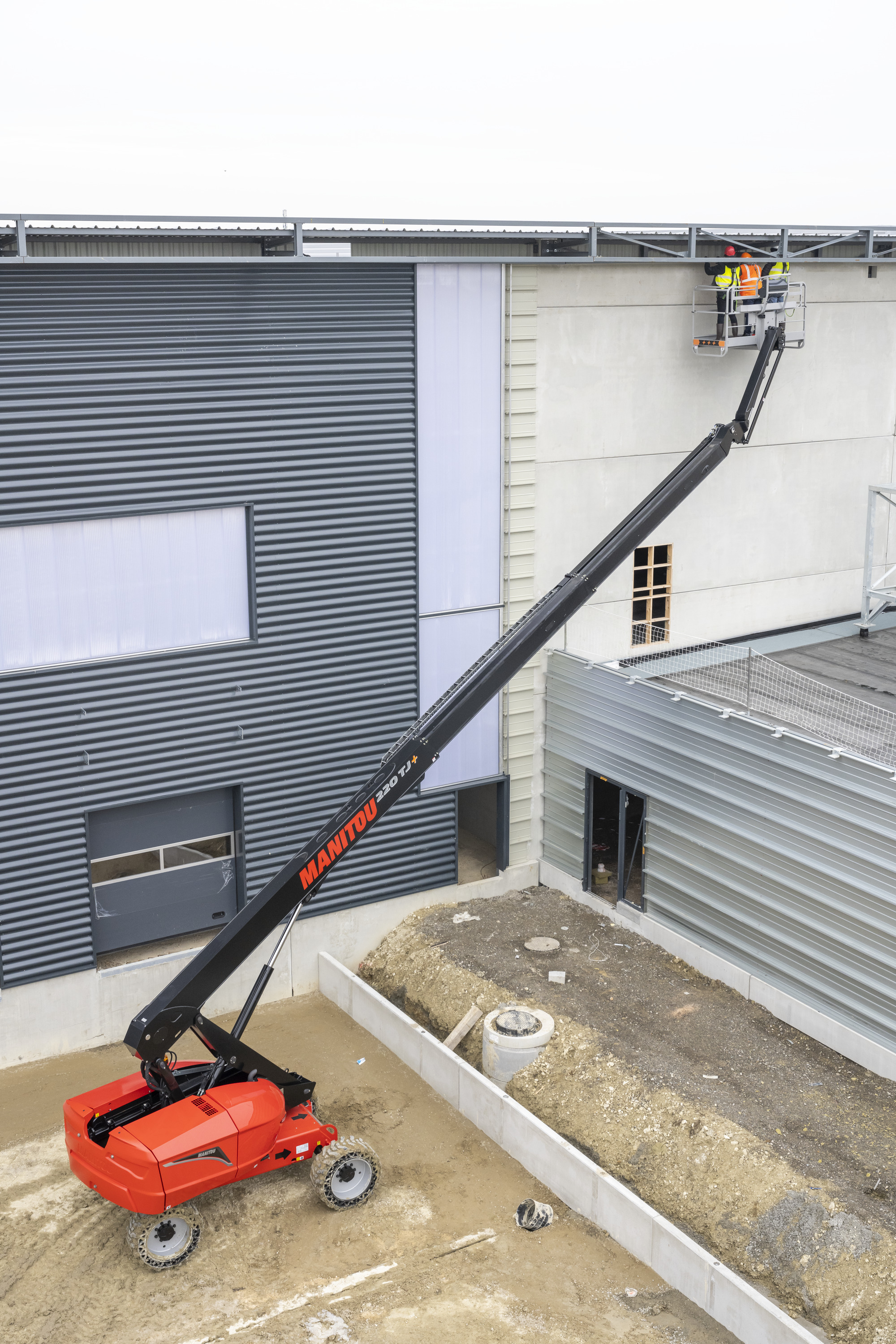

Telescopic boom lift for working at great heights on demanding job sites and rough terrain. Offers a working height of up to 21.74 meters, a capacity of 408 kg, and a long horizontal reach for maintenance, construction, and events.
- Prix par jour 375,00 €
- Prix par semaine 990,00 €
- Prix par mois 3 215,00 €
Après votre demande, vous recevrez une offre incluant le transport et l'assurance
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,800 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,560 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,800 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,560 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
| Max. travel speed | 4.9 km/h |
|---|---|

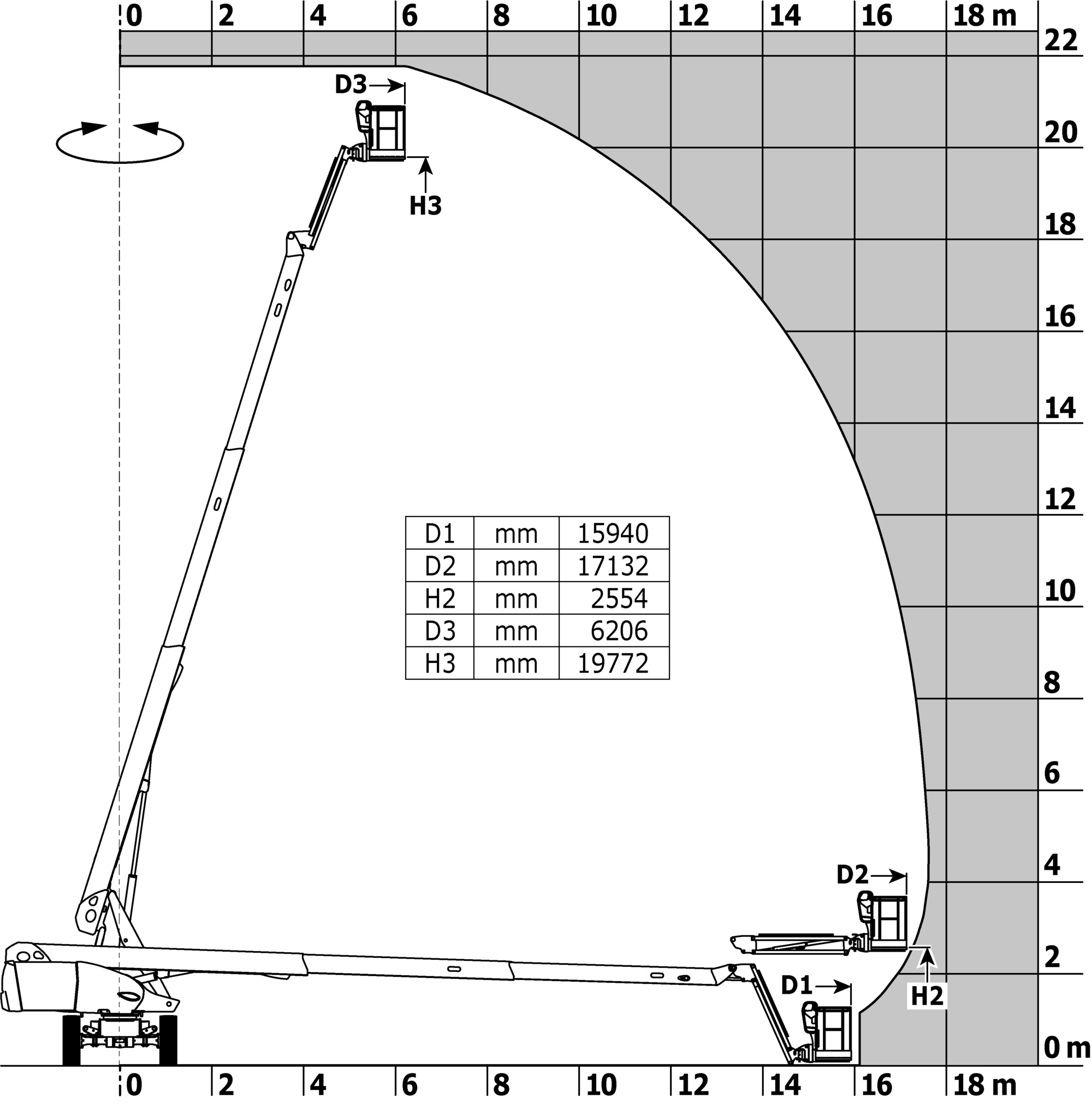

| Déport maximal (m) | 17,790 m |
| Max. platform height | 19,740 m |
| Hauteur de travail (m) | 21,740 m |
Aerial platforms d'occasion en stock - 89 articles
Afficher les machines avec des options de filtrage pour trouver votre machine idéale !
Aichi SV10EWL electric scissor lift with a working height of 11.68 meters, a lifting capacity of 450 kg, a platform extension of 1.27 meters, a width of 1.17 meters, non-marking tires, and proportional joystick control. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations, and professional interior work requiring high platform capacity.
- Ref # 3319
- Année de fabrication 2019
Aichi SV10EWL electric scissor lift with a working height of 11.68 meters, a lifting capacity of 450 kg, a platform extension of 1.27 meters, a width of 1.17 meters, non-marking tires, and proportional joystick control. Suitable for warehouses, production halls, maintenance, lighting, sprinklers, HVAC installations, and professional interior work requiring high platform capacity.
- Ref # 4336
- Année de fabrication 2021
Compact electric AICHI SV06 ENS scissor lift with a working height of up to approximately 7.7 meters, a 230 kg load capacity, a narrow profile of approximately 0.81 meters, a quiet, emission-free drive system, and non-marking tires. Suitable for indoor spaces, warehouses, retail stores, facility management, lighting, HVAC installations, electrical work, and general maintenance.
- Ref # 4329
- Hauteur (m) 1,990 m
- Weight 1540 kg
- Année de fabrication 2019
Compact CMC S23 tracked spider lift with a 23-meter working height, a lateral reach of up to 12.4 meters, a platform capacity of over 200 kg, automatic leveling, and adjustable outriggers. Suitable for tree care, facade maintenance, painting, industrial cleaning, inspections, churches, museums, and hard-to-reach areas.
- Ref # 6519
- Hauteur (m) 4,510 m
- Weight 3000 kg
- Année de fabrication 2025
Informations sur le produit
Rent a Manitou TJ 220 PLUS

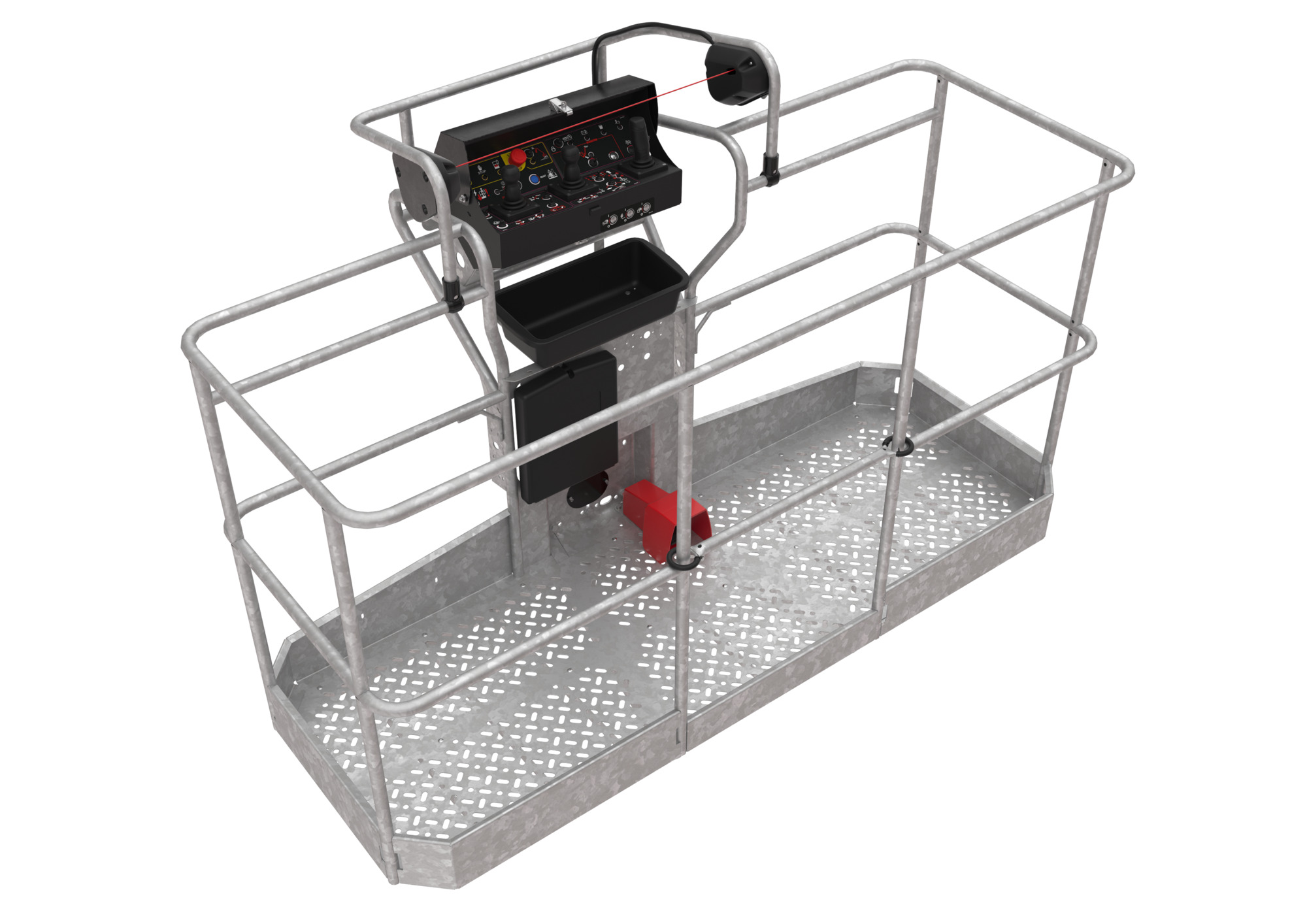

This TJP variant of the 22-meter aerial work platform features a swing arm. Four-wheel drive with a 4RD configuration (four-wheel drive and steering) ensures exceptional maneuverability. The Stage V diesel engine meets strict emission standards. A telescopic swing arm opens up reach behind obstacles. The platform accommodates two operators with tools, with a capacity of 400 kg. An ergonomic control panel supports precision work. A protective cage safeguards operators. Compact transport dimensions expedite relocation. The luffing boom configuration improves access to hard-to-reach work points during complex facade or installation work.
Urban construction, facade maintenance behind obstacles, and complex industrial installations make use of this TJP variant. Working behind protruding structures, above existing roofs, or around complex installations are core applications. Thanks to the jib, the operator can reach areas that telescopic boom lifts without a jib cannot access. A specialized rental choice when complex facade configurations with protruding elements hinder standard reach, and when the project requires creative access angles to difficult work points without additional scaffolding or crane support during execution.
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,800 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,560 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
Caractéristiques
| État de la machine | Nouveau |
|---|
| Largeur (m) | 2,800 m |
|---|---|
| Longueur (m) | 9,810 m |
| Hauteur (m) | 2,560 m |
| Weight | 11850 kg |
| Type | 3TNV88C |
|---|---|
| Emission | Stage V |
| Power (kW) | 27.5 kW |
| Max. travel speed | 4.9 km/h |
|---|---|
| Déport maximal (m) | 17,790 m |
| Max. platform height | 19,740 m |
| Hauteur de travail (m) | 21,740 m |
